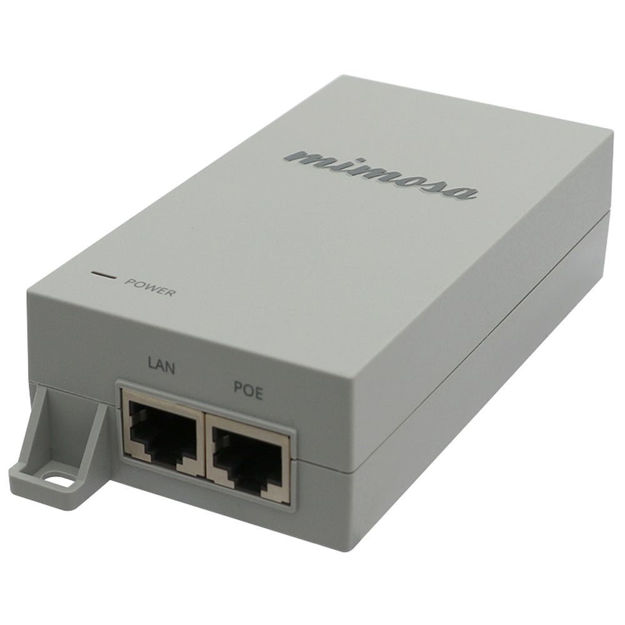

Description The Mimosa Networks Gigabit Passive PoE 50v Injector is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Power cord is included with this injector. Dimensions (L x W x H) 138 mm x 62 mm x 35 mm 5.4” x 2.4” x 1.4” Weight 0.24 kg 8.8 oz Technical Description Color: Grey Gigabit LAN: Yes, (2) RJ-45 Output Voltage: 50 V === 1.2A Max Current Load: 1.2A (60 W) Pinout: PIN 1/2 and 4/5: 50 V PIN 3/6 and 7/8: GND Input Voltage: 100–240 VAC ~ 50/60 Hz; Max 1.5A Input Current: 1.5A @ 115 VAC; 1.0A @ 230 VAC Input Frequency: 47–63 Hz Max In-Rush Current: 150A
