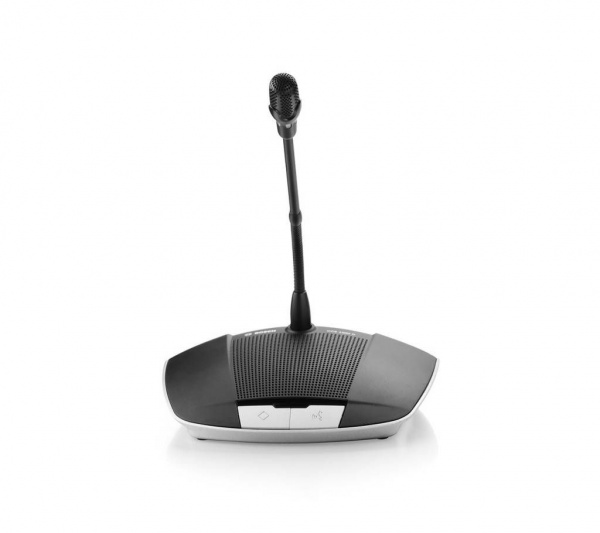

Bosch CCSD-DL Conference System Chairman Unit Discussion Device

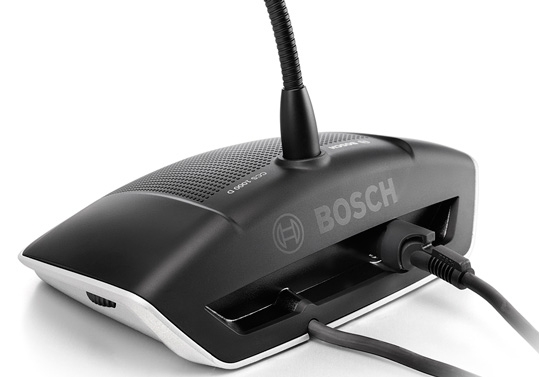

Description Bosch CCSD-DL Conference System Discussion Device Overview Discussion Devices are connected in a daisy‑chain configuration to the Control Unit (CCSD‑CU or CCSD‑CURD) of a CCS 1000 D Digital Discussion System. Their plug‑and‑play functionality allows them to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary, which ensures fast installation and reconfiguration times. Participants can take part in a discussion by speaking into the microphone and listening to proceedings through the built‑in loudspeaker or (optional) headphones. Possible-to-speak indication A white possible‑to‑speak indicator above the microphone button indicates when the microphone can be activated. Request‑to‑speak indicationA green request‑to‑speak indicator above the microphone button and in the head of the microphone indicate when a request‑to‑speak has been added to the waiting list. The indicators flash green when the request‑to‑speak is first in the waiting list. Microphone with flexible stemThe fixed microphone with flexible stem can be easily adjusted to suit the user. Built-in loudspeaker with volume control To ensure for optimum intelligibility, the loudspeaker volume of all Discussion Devices is centrally controlled from the Control Unit. Face-to-face meeting feelingAn authentic face‑to‑face meeting feeling is achieved by allowing the loudspeaker and microphone to be on at the same time. Headphones socketThe built‑in 3.5 mm (0.14 in) stereo headphones socket enables the speaker to be clearly heard, even when there is excessive background noise.   Built‑in volume control for headphonesFor maximum comfort, the headphones volume can be adjusted by means of a rotary thumbwheel on the side of the Discussion Device. To prevent acoustic feedback from headphones to microphone, an option in the web browser interface application can be set to automatically reduce the headphones volume when the microphone is activated. GSM immunityImmunity to mobile phone interference ensures clear, uninterrupted discussion. Configurable as a participant device or chairpersondeviceThe Discussion Device can be quickly configured as a chairperson device, which enables a user to function as the chairperson at a meeting. No restart of the system is required. During a discussion, the chairperson can press and hold in the priority button to overrule all participant microphones. A chime is sounded to announce that the chairperson is about to speak. Controls and Indicators• Microphone button• Color-coded LED indicator above microphone button for showing the following states: microphone on, request‑to‑speak, and possible‑to‑speak• Light‑ring indicator in head of microphone• Rotary thumbwheel on side of device for adjusting the headphones volume• Concealed initialization button at base of device for reassigning the network address• Concealed slide‑switch at base of device for configuring the device as a participant or chairperson’s device• Chairperson’s configuration only – separate microphone button and ‘priority button’ Connections• 1 x 6‑pole circular female connector with cable locking recess – for loop‑through connection of Discussion Devices• 1 x 3.5 mm (0.14 in) stereo headphones socket on side of device• 1 x 2 m (78.7 in) cable with a 6‑pole circular male connector with cable lock Download Datasheet
