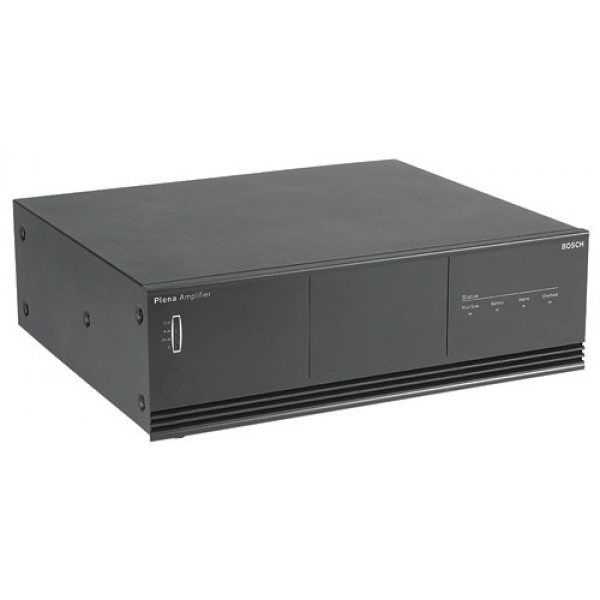

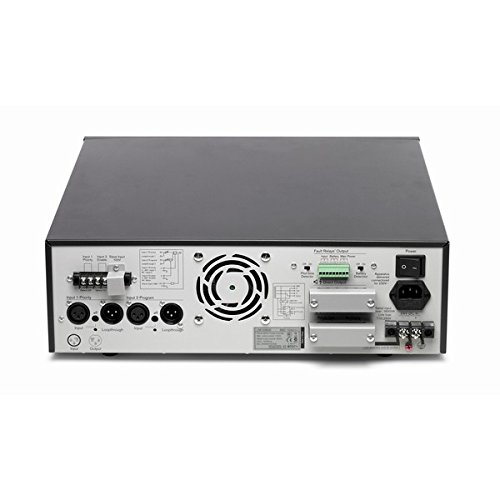

Description The LBB 1938/20 is a powerful 480 W power amplifier in a 3U high 19”case for rack mounting or tabletop use. LEDs on the front panel show the status of the amplifier: power, audio output level, and supervised functions. This high-performance unit fulfills a wide range of public address requirements at a surprisingly low cost. Functions Dependability The amplifier is protected against overload and short circuits. A temperature-controlled fan ensures high reliability at high output levels and low acoustic noise at lower output levels. An overheat protection circuit switches off the power stage and activates an LED on the front panel, if the internal temperature reaches a critical limit due to poor ventilation or overload. The unit operates both on mains power and on a 24 V battery power supply for emergency back up, with automatic switchover. For emergency and evacuation use, the following functions are monitored: mains presence, battery present, pilot tone presence, amplifier operation. Front panel LEDs indicate the status of supervised functions. The LEDs of pilot tone supervision and battery status can be switched off for general public address use. Failsafe (normally energized) relays are provided for each supervised function. These relays are always active regardless of the switches on the rear panel. Input The system has two balanced inputs with priority control, each with a loop-through facility. This makes it easy to connect remote systems that require priority control. An additional 100 V line input is provided to connect the amplifier to a 100 V loudspeaker line, to provide more power to remote locations. Gain or level control is located on the rear of the unit to avoid accidental setting change. A meter with LED-bar shows the output level. Output The amplifier has 70 V and 100 V outputs for constant voltage loudspeaker systems and a low impedance output for 8 ohm loudspeaker loads. The LBB 1938/20 has two separate priority controlled 100 V outputs for zones that only need announcements made via the priority input, and for zones that will not get any announcements made via the priority input. Controls and indicators Front • Meter (LED’s for -20, -6, 0 dB and Power ON) • Battery operation indicator • Overheat indicator • Air inlet for forced air cooling Back • Level control input 1 • Level control input 2 • Power button • Mains switch Interconnections Back • Priority line input 1 (XLR/balanced) • Line loop-through 1 (XLR/balanced) • Program line input 2 (XLR/balanced) •Line loop-through 2 (XLR/balanced) • Priority controlled loudspeaker output terminals • 24 VDC power supply terminal • Three loudspeaker direct output terminals • Two 100 V slave input terminals • Input 2 enable control terminal • Input 1 priority control terminal • Earth connection screw • Mains socket Download Datasheet
